Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Todos os Produtos
Cabo flexível industrial (216)
Cabo flexível do único núcleo (25)
Cabo flexível Multicore (27)
gancho acima do fio (54)
Cabo de carregamento de EV (52)
Cabos do dispositivo médico (19)
Datilografe o cabo de TC-ER (10)
Fio automotivo do cabo (15)
Cabo distribuidor de corrente espiral (14)
Cabo da transmissão do sinal (19)
cabo distribuidor de corrente coaxial (12)
Cabo Chain do arrasto (13)
Cabos da conexão do computador (11)
Único cabo do condutor (36)
multi cabo do condutor (38)
Cabo do servo motor (10)
Cabo da energia (16)
Cabo liso bonde (10)
Os melhores produtos
Arda - núcleo de carregamento retardador da C.A. e da C.C. do cabo de 450/750V EV o multi

Arda - núcleo de carregamento retardador da C.A. e da C.C. do cabo de 450/750V EV o multi

C.A. estanhada/desencapada EV do cobre que carrega resistente UV da bainha do cabo EV-RS90U TPU

C.A. estanhada/desencapada EV do cobre que carrega resistente UV da bainha do cabo EV-RS90U TPU

Cabo de carregamento de EVJE EV para veículos elétricos com encalhado condutor de cobre estanhado/desencapado

Cabo de carregamento de EVJE EV para veículos elétricos com encalhado condutor de cobre estanhado/desencapado

Certificado
China NANTONG HWATEK WIRES AND CABLE CO.,LTD. Certificações
China NANTONG HWATEK WIRES AND CABLE CO.,LTD. Certificações
obrigado muito para sua resposta rápida. Sua solução profissional do cabo ajuda-me para fora, qualidade do cabo é muito boa. Cabe nossos conectores

—— Gonalze

Sua qualidade de produtos além do meu imagina, eu aprecio altamente seu grande apoio, a esperança tem a melhor e cooperação mais profunda no futuro.

—— Bharath

Estou Chat Online Agora

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

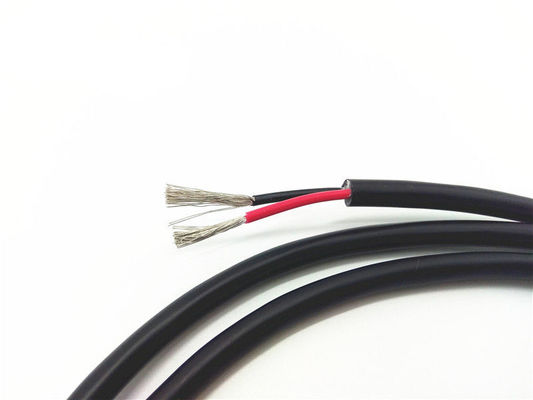

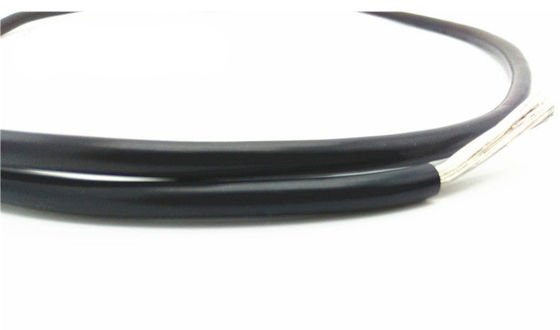

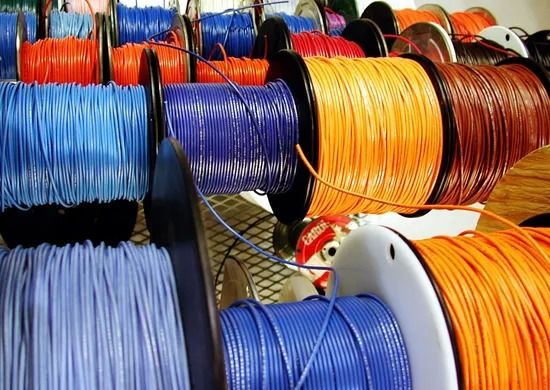

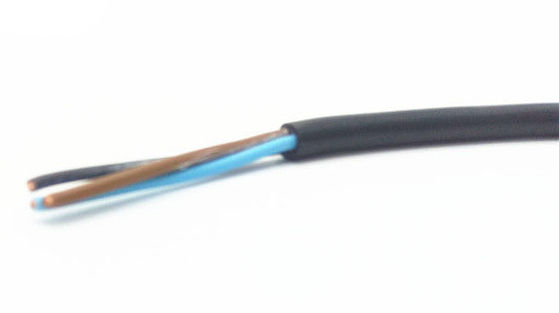

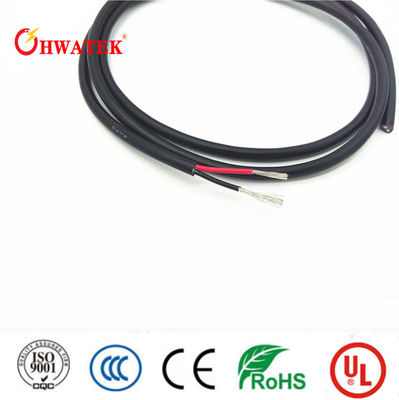

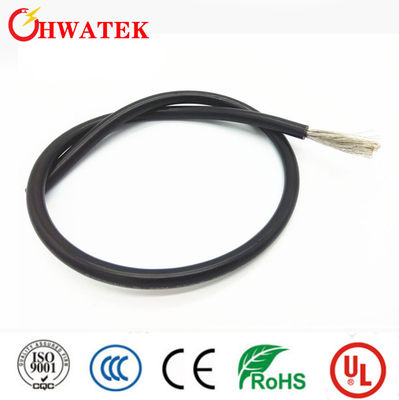

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Imagem Grande :  Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Detalhes do produto:
Certificação: ISO9001, CE, CCC, RoHS
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100 metros
Contato
Descrição de produto detalhada
Material condutor: Cobre da placa de prata Material de bainha: Ptfe
Material de isolamento: PFA Forma de material: Fio redondo
Tamanho do cabo: 42AWG Construção: 7/0,025mm
Diâmetro da fita: 0,075mm Espessura de isolamento: 0.10mm
Diâmetro de isolamento: 0,27 ± 0,05 mm Diâmetro final da montagem: 7.30mm
Espessura da jaqueta: 0.60mm Diâmetro externo: 9,40 ± 0,30mm
Temperatura nominal: 60 ° C. Tensão nominal: 30V
Pacote de Transporte: 500m/carretel
Destacar:

Silver Plate Copper Medical Device Cable

,

PTFE Sheath Medical Device Cable

,

PFA Insulation Medical Device Cable

Customized 42 AWG and 75 Ohms Medical Device Cables
Product Specifications
  • Conductor: Silver plate copper alloy Jacket
  • Size: 42AWG
  • Construction: 7/0.025mm
  • Strand Dia: 0.075mm
  • Insulation: Foam PFA
  • Nom.Thickness: 0.10mm
  • Insulation Dia: 0.27±0.05mm
  • Insulation colour: Natural
  • Spiral Tinned copper alloy, 0.0254mm, ≥90%
  • Inner jacket Pet tape, ≥25%
  • Colour options: White (A1,A4,A5), Black (A2,A6,A7), Red (A3,A8,A9), Blue (A10,A11,A12)
  • Assembly-A: 16Cx42AWG
  • Final assembly: 12×Assembly-A+Filler
  • Final assembly Dia. nom.: 7.30mm
  • Material: PTFE tape, ≥25%
  • Braid: Tinned copper tinsel, 0.11mm, ≥95%
  • Jacket: PVC
  • Nom.Thickness: 0.60mm
  • Outer Dia.: 9.40±0.30mm
  • Colour: White (standard, customizable)
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 0 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 1
Technical Specifications
  • Reference standard: NOUL
  • Product Category: NOUL192Cx42AWG(60pF)
  • Rated temperature: 60°C
  • Rated voltage: 30V
  • Conductor: Silver plate copper alloy
  • Insulation material: Foam PFA
  • Sheath material: PVC
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 2
Customization Options
  • Detailed dimensions are subject to product specifications
  • Other specifications can be designed and manufactured according to customer requirements
  • Standard sheath color is black, customizable upon request
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 3 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 4
Company Profile

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.

With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 5 Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 6
Certifications
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 7
Production Process
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 8
Shipping
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 9
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
Major Customers
Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation 10
