AC450/750V CQC Stranded Tinned Bare Copper Conductor EV Power Charging Cable
Certification
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. |
Product Types |
| CQC16011142377 |
EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V |
Structure Diagram
Technical Specifications
Reference standard: GB/T 33594-2017
Product Category
AC:EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction
- Rated temperature: -40 ~ +90°C
- Rated voltage: AC450/750V
- Conductor: Stranded bare or tinned copper
- Insulation material: TPE
- Sheath material: TPU
- Flexible Construction
- Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress
- IEC60332-1 flammability test
- Minimum bending radius 5xOD
- Easy installation
Applications: All kinds of electric vehicles, charging piles, power stations, charging stations.
Structural Parameter Table
| Category |
Wire specifications |
Reference current (A) |
Diameter unshielded (mm) |
| EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V |
3×2.5+2×0.75 |
18 |
12.7 | 11.1 |
| 3×4+2×0.75 |
25 |
14.4 | 12.8 |
| 3×6+2×0.75 |
34 |
16.3 | 14.5 |
| 5×2.5+2×0.75 |
18 |
15.3 | 13.7 |
| 5×4+2×0.75 |
25 |
17.8 | 16.0 |
| 5×6+2×0.75 |
34 |
19.8 | 17.8 |
| 5×10+2×0.75 |
50 |
22.9 | 20.7 |
| 5×16+2×0.75 |
67 |
27.5 | 25.1 |
- The detailed dimensions are subject to the product specifications.
- Other specifications can be designed and manufactured according to customer requirements.
- The color of the sheath is generally black or orange. Special requirements can be customized.
Company Profile

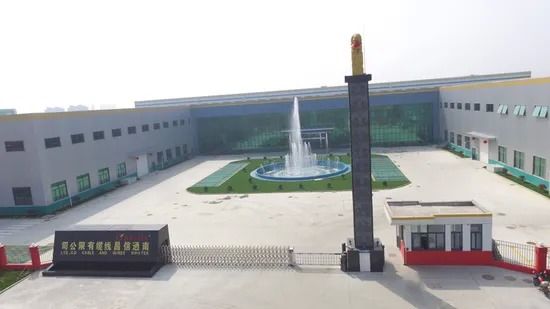

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates.
